capacitor
Product features:
F-series low-voltage explosion-proof dry type capacitor is made of high-strength steel plate as the shell, and consists of N small aluminum monomers inside. Each small monomer has independent protection and sequential protection function. The inner monomer is made of aluminum, sealed with pure dry rubber, and is pure dry capacitor. The monomer is close to the shell steel plate, the heat dissipation performance is strong, the product safety is extremely high, can use in the working condition harsh environment.

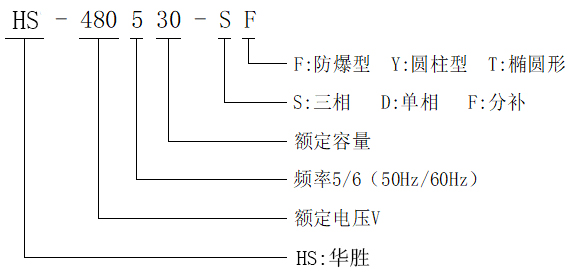

Model description:

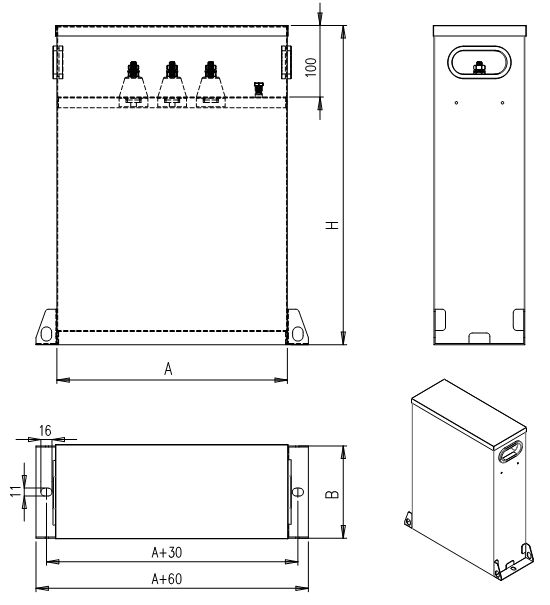

Size chart:
Size table:
| 分補 ×3 phase 50Hz 250V | ||||||||
|
產品型號 Type |
額定電壓 Rated V. |
額定容量 Cap. |
額定電流 Rated current |
接線端子 Terminal |
尺寸 Dimensions |
|||
| kvar×3 | μ F×3 | A×3 | A | B | H | |||
| HS-250510-FF | 250 | 3.34 | 170 | 13.4 | M8 | 200 | 130 | 350 |
| HS-250515-FF | 250 | 5 | 255 | 20.0 | M8 | 200 | 130 | 350 |
| HS-250520-FF | 250 | 6.67 | 340 | 26.7 | M8 | 200 | 130 | 350 |
| HS-250525-FF | 250 | 8.34 | 425 | 33.4 | M8 | 200 | 130 | 350 |
| HS-250530-FF | 250 | 10 | 510 | 40.0 | M8 | 330 | 130 | 350 |
| HS-250540-FF | 250 | 13.34 | 680 | 53.4 | M8 | 330 | 130 | 450 |
| HS-250545-FF | 250 | 15 | 764 | 60.0 | M12 | 330 | 130 | 450 |
| HS-250550-FF | 250 | 16.67 | 849 | 66.7 | M12 | 330 | 130 | 450 |
| HS-250560-FF | 250 | 20 | 1019 | 80.0 | M12 | 330 | 130 | 570 |
|
分補 ×3 phase 50Hz 280V |
||||||||
|
產品型號 Type |
額定電壓 Rated V. |
額定容量 Cap. |
額定電流 Rated current |
接線端子 Terminal |
尺寸 Dimensions |
|||
| kvar×3 | μ F×3 | A×3 | A | B | H | |||
| HS-280510-FF | 280 | 3.34 | 136 | 11.9 | M8 | 200 | 130 | 350 |
| HS-280515-FF | 280 | 5 | 203 | 17.9 | M8 | 200 | 130 | 350 |
| HS-280520-FF | 280 | 6.67 | 271 | 23.8 | M8 | 200 | 130 | 350 |
| HS-280525-FF | 280 | 8.34 | 339 | 29.8 | M8 | 200 | 130 | 350 |
| HS-280530-FF | 280 | 10 | 406 | 35.7 | M8 | 330 | 130 | 350 |
| HS-280540-FF | 280 | 13.34 | 542 | 47.6 | M8 | 330 | 130 | 450 |
| HS-280545-FF | 280 | 15 | 609 | 53.6 | M12 | 330 | 130 | 450 |
| HS-280550-FF | 280 | 16.67 | 677 | 59.5 | M12 | 330 | 130 | 450 |
| HS-280560-FF | 280 | 20 | 812 | 71.4 | M12 | 330 | 130 | 570 |
|
分補 ×3 phase 50Hz 300V |
||||||||
|
產品型號 Type |
額定電壓 Rated V. |
額定容量 Cap. |
額定電流 Rated current |
接線端子 Terminal |
尺寸 Dimensions |
|||
| kvar×3 | μ F×3 | A×3 | A | B | H | |||
| HS-300510-FF | 300 | 3.34 | 118 | 11.1 | M8 | 200 | 130 | 350 |
| HS-300515-FF | 300 | 5 | 177 | 16.7 | M8 | 200 | 130 | 350 |
| HS-300520-FF | 300 | 6.67 | 236 | 22.2 | M8 | 200 | 130 | 350 |
| HS-300525-FF | 300 | 8.34 | 295 | 27.8 | M8 | 200 | 130 | 350 |
| HS-300530-FF | 300 | 10 | 354 | 33.3 | M8 | 330 | 130 | 350 |
| HS-300540-FF | 300 | 13.34 | 472 | 44.5 | M8 | 330 | 130 | 450 |
| HS-300545-FF | 300 | 15 | 531 | 50.0 | M12 | 330 | 130 | 450 |
| HS-300550-FF | 300 | 16.67 | 590 | 55.6 | M12 | 330 | 130 | 450 |
| HS-300560-FF | 300 | 20 | 708 | 66.7 | M12 | 330 | 130 | 570 |
|
三相 3 phase 50Hz 450V |
||||||||
|
產品型號 Type |
額定電壓 Rated V. |
額定容量 Cap. |
額定電流 Rated current |
接線端子 Terminal |
尺寸 Dimensions |
|||
| kvar | μ F | A | A | B | H | |||
| HS-450520-SF | 450 | 20 | 315 | 25.7 | M8 | 200 | 130 | 350 |
| HS-450525-SF | 450 | 25 | 393 | 32.1 | M8 | 200 | 130 | 350 |
| HS-450530-SF | 450 | 30 | 472 | 38.5 | M8 | 200 | 130 | 350 |
| HS-450535-SF | 450 | 35 | 550 | 44.9 | M8 | 330 | 130 | 350 |
| HS-450540-SF | 450 | 40 | 629 | 51.3 | M8 | 330 | 130 | 350 |
| HS-450550-SF | 450 | 50 | 786 | 64.2 | M12 | 330 | 130 | 450 |
| HS-450560-SF | 450 | 60 | 944 | 77 | M12 | 330 | 130 | 450 |
| HS-450570-SF | 450 | 70 | 1101 | 89.8 | M12 | 330 | 130 | 570 |
| HS-450580-SF | 450 | 80 | 1258 | 102.6 | M12 | 330 | 130 | 570 |
| HS-450590-SF | 450 | 90 | 1415 | 115.5 | M12 | 330 | 130 | 570 |
|
三相 3 phase 50Hz 480V |
||||||||
|
產品型號 Type |
額定電壓 Rated V. |
額定容量 Cap. |
額定電流 Rated current |
接線端子 Terminal |
尺寸 Dimensions |
|||
| kvar | μ F | A | A | B | H | |||
| HS-480520-SF | 480 | 20 | 276 | 24.1 | M8 | 200 | 130 | 350 |
| HS-480525-SF | 480 | 25 | 346 | 30.1 | M8 | 200 | 130 | 350 |
| HS-480530-SF | 480 | 30 | 415 | 36.1 | M8 | 200 | 130 | 350 |
| HS-480535-SF | 480 | 35 | 484 | 42.1 | M8 | 330 | 130 | 350 |
| HS-480540-SF | 480 | 40 | 553 | 48.1 | M8 | 330 | 130 | 350 |
| HS-480550-SF | 480 | 50 | 691 | 60.1 | M12 | 330 | 130 | 450 |
| HS-480560-SF | 480 | 60 | 829 | 72.2 | M12 | 330 | 130 | 450 |
| HS-480570-SF | 480 | 70 | 968 | 84.2 | M12 | 330 | 130 | 570 |
| HS-480580-SF | 480 | 80 | 1106 | 96.2 | M12 | 330 | 130 | 570 |
| HS-480590-SF | 480 | 90 | 1244 | 108.3 | M12 | 330 | 130 | 570 |
| HS-4805100-SF | 480 | 100 | 1382 | 120.3 | M12 | 400 | 130 | 570 |
| HS-4805120-SF | 480 | 120 | 1659 | 144.3 | M12 | 400 | 130 | 570 |
|
三相 3 phase 50Hz 525V |
||||||||
|
產品型號 Type |
額定電壓 Rated V. |
額定容量 Cap. |
額定電流 Rated current |
接線端子 Terminal |
尺寸 Dimensions |
|||
| kvar | μ F | A | A | B | H | |||
| HS-525520-SF | 525 | 20 | 231 | 22.0 | M8 | 200 | 130 | 350 |
| HS-525525-SF | 525 | 25 | 289 | 27.5 | M8 | 200 | 130 | 350 |
| HS-525530-SF | 525 | 30 | 347 | 33.0 | M8 | 200 | 130 | 350 |
| HS-525535-SF | 525 | 35 | 404 | 38.5 | M8 | 330 | 130 | 350 |
| HS-525540-SF | 525 | 40 | 462 | 44.0 | M8 | 330 | 130 | 350 |
| HS-525550-SF | 525 | 50 | 578 | 55.0 | M12 | 330 | 130 | 450 |
| HS-525560-SF | 525 | 60 | 693 | 66.0 | M12 | 330 | 130 | 450 |
| HS-525570-SF | 525 | 70 | 809 | 77.0 | M12 | 330 | 130 | 570 |
| HS-525580-SF | 525 | 80 | 924 | 88.0 | M12 | 330 | 130 | 570 |
| HS-525590-SF | 525 | 90 | 1040 | 99.0 | M12 | 330 | 130 | 570 |
| HS-5255100-SF | 525 | 100 | 1155 | 110 | M12 | 400 | 130 | 570 |
| HS-5255120-SF | 525 | 120 | 1387 | 132 | M12 | 400 | 130 | 570 |
◎ can be customized according to customer needs.
◎ in case of any deviation between external size and actual size, the actual size shall prevail.
