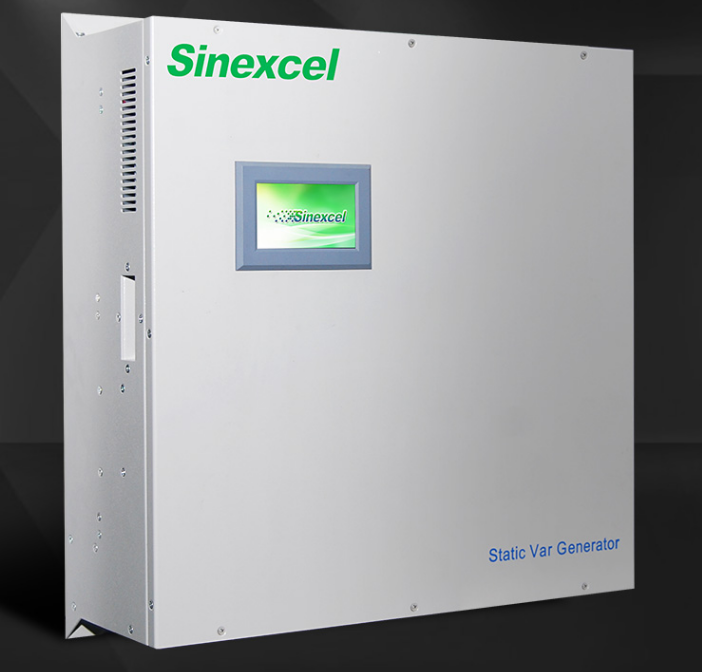

Static reactive power generator SVG
SVG, the reactive power compensation function essence enhancement
Product features
SVG adopts the product design concept of components, which can compensate the inductive load and achieve the compensation effect of 0.99, effectively avoiding the over-compensation and under-compensation.
The software algorithm accurately controls the active compensation of power transformation
SVG is an active, fully controlled reactive power compensation technology that can be equivalent to a controlled voltage (current) source.
Reactive compensation is a core user requirement, and SVG takes it to the extreme
Reactive compensation is a core user requirement, and SVG takes it to the extreme
Quick response time: quick response time of SVG is less than 50us and full response time is less than 15ms. When the load reactive power fluctuates rapidly, SVG can completely follow the rapid and drastic change speed of the load reactive power, realizing real-time compensation effect.
Good compensation effect: the traditional capacitor compensation technology is prone to over-compensation or under-compensation due to its grouping step switching characteristics. Huasheng SVG adopts modern flexible technology to smooth the output reactive power current, which can accurately detect the reactive power change of load, and emit reactive power current that is equal to and opposite to the system reactive power, and finally realize the precise compensation effect of PF0.99.
No need to replace the parts periodically, reducing user investment

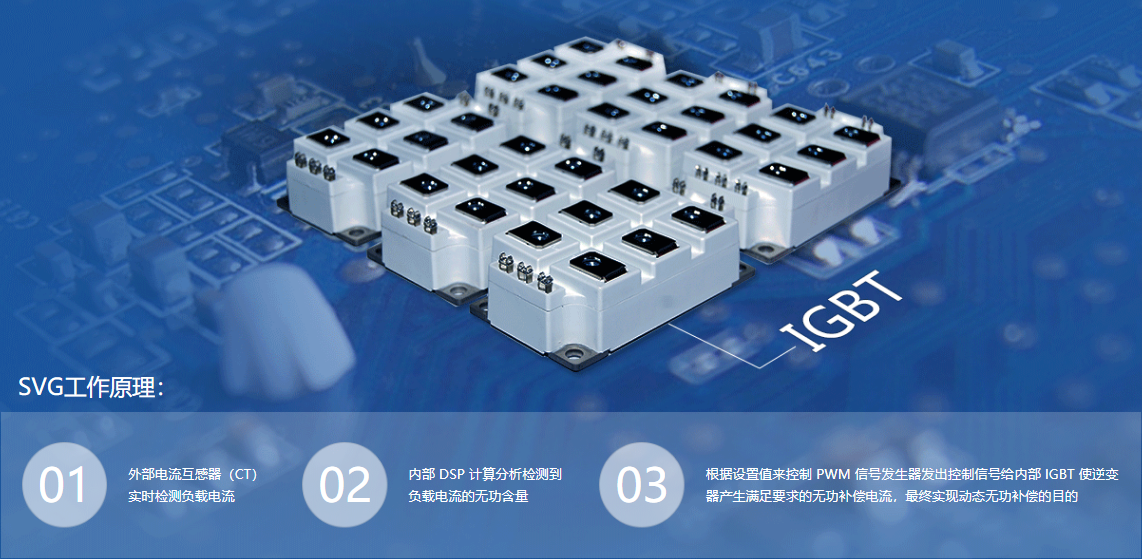

Traditional capacitance compensation mode is sensitive to system parameters, when the parameters configuration is not reasonable, or after a period of time, the change of system parameters, very prone to harmonic amplification phenomenon, cause safety accidents, the system voltage fluctuation, the compensation effect is affected by a lot, running loss is big, so you need not regularly update maintenance capacitor unit; SVG is an inverter based on IGBT technology and a controllable current source compensation device, which will not generate harmonic amplification and resonance, is insensitive to system parameters, and has good security and stability.
No need to replace the parts periodically, reducing user investment
Traditional capacitance compensation mode is sensitive to system parameters, when the parameters configuration is not reasonable, or after a period of time, the change of system parameters, very prone to harmonic amplification phenomenon, cause safety accidents, the system voltage fluctuation, the compensation effect is affected by a lot, running loss is big, so you need not regularly update maintenance capacitor unit; SVG is an inverter based on IGBT technology and a controllable current source compensation device, which will not generate harmonic amplification and resonance, is insensitive to system parameters, and has good security and stability.
Single cabinet 500kvar ultra high capacity, for users to save space
A cabinet of 600X800X2200 (mm) places a 5X100kvar module, which improves the user's productivity, and the power distribution system becomes complicated and requires more space to place the equipment

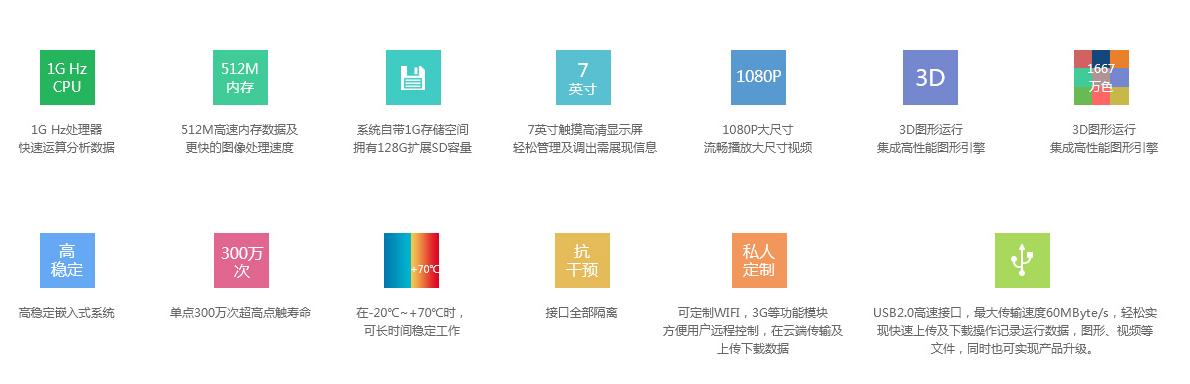

Multiple monitoring forms bring you rich human-computer interaction experience
APF is equipped with a variety of monitoring and control methods for different models, including 4.3-inch touch color screen, 7-inch full-color LCD touch screen and mobile terminal control system, providing customers with multiple choices.
