EMAKE integrated energy management platform
System overview
EMAKE energy management system based on cloud architecture, and through the massive energy consumption data collection, extract valuable information to the user, the combination of professional energy saving operations expert team and visual display tools, to provide users with targeted industry solutions, from the perspective of knowledge transformation to realize digital information one by one by knowledge-based intelligent transformation, building intelligent energy management system.
System highlights

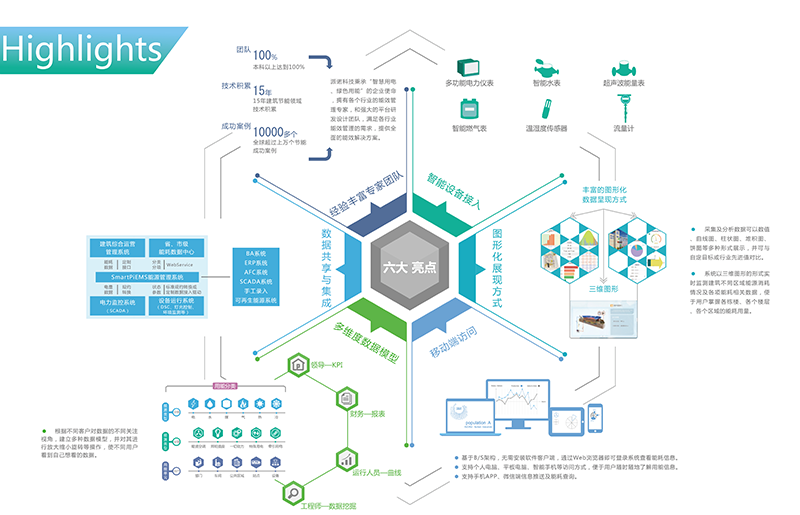

System highlights

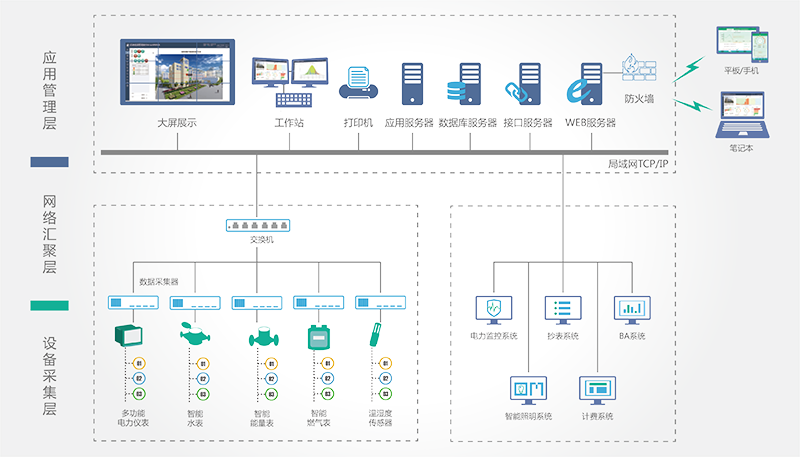

Application management: application management is the core component of the system. All energy consumption data, equipment operation status information and environmental condition information are processed, analyzed and evaluated in this layer, so as to release current energy use status to users and provide user-friendly human-machine interface and working window.
The equipment of this layer mainly includes: server, monitor host, display screen, UPS, printer, operating station and so on.
Network aggregation layer: the network aggregation layer is the intermediate connection between the device acquisition layer and the application management layer, which is responsible for uploading the scattered energy consumption data to the application management layer. At the same time, this layer is also the interface between the system and other intelligent systems to realize data sharing between the systems.
The equipment includes: intelligent communication management machine, industrial network switch, industrial rs485/232 converter.
Equipment acquisition layer: the equipment acquisition layer is the foundation of the system, and most of the energy consumption data comes from this layer. In addition to the traditional energy metering function, this layer of equipment also needs to support RS485 communication or wireless communication to send the field energy consumption data to the application management.
The equipment of this layer mainly includes: multi-function power monitoring instrument, multi-function electricity meter, intelligent water meter, intelligent gas meter, temperature and humidity sensor, etc.
System highlights

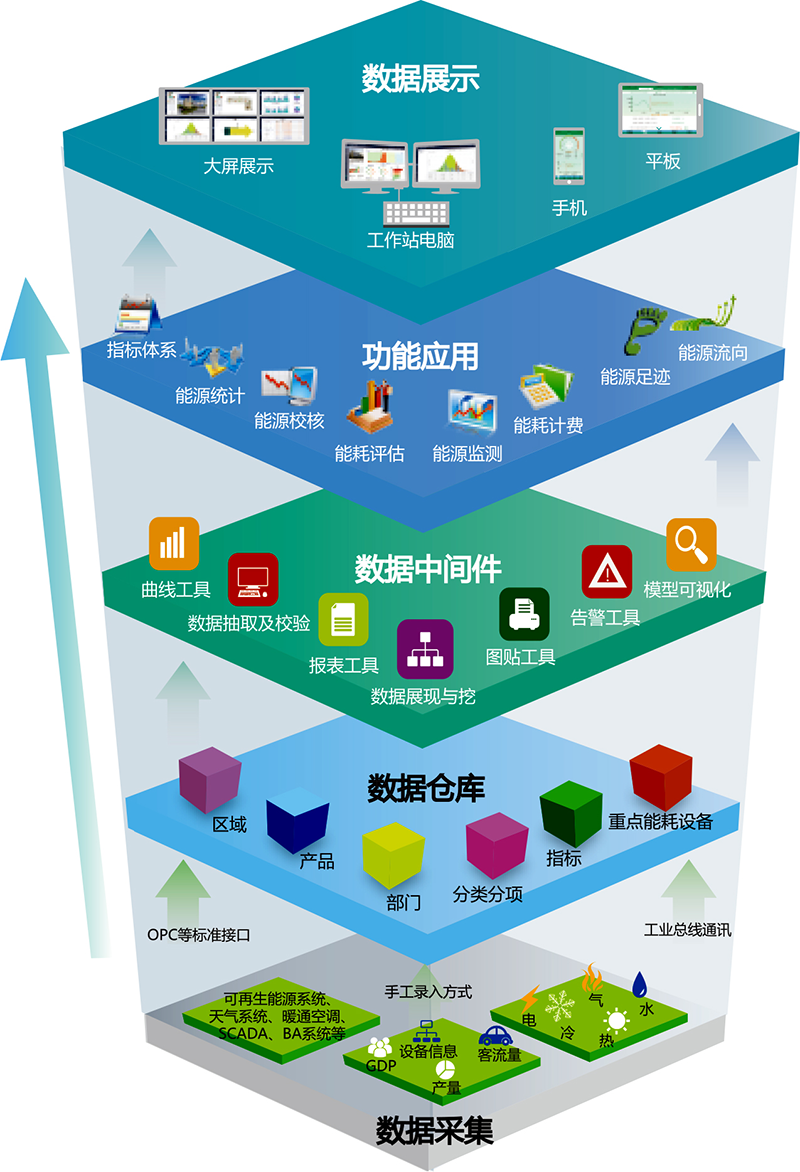

The data collection
(1) meter measurement: various energy consumption data are collected by intelligent power meter, intelligent water meter, gas meter, ultrasonic energy meter and other terminal acquisition devices;
(2) third-party system: obtain relevant data from the third-party system through standard interfaces such as WebService or OPC;
(3) manual input: obtain equipment information, output, GDP, customer flow and other data by manual input.
The data warehouse
The system establishes data models corresponding to different perspectives and generates corresponding data warehouses for data analysis and evaluation of the energy management system.
Data middleware
Provide data extraction and verification, data report timing generation, data authority allocation management, system configuration, meter management and other basic services.
Function application
It mainly provides users with different business function modules, presents users' energy usage, and makes statistics, analysis and processing of energy consumption data, so as to help users find energy consumption loopholes and formulate energy conservation plans.
It covers energy statistics, index system, energy audit, energy consumption assessment, energy monitoring, energy consumption billing, energy footprint, energy flow and other functional applications.
The data show
The system provides a variety of flexible data presentation methods, including workstation computer, mobile phone, tablet and other access methods, and according to the needs and authority of different types of users such as operators, managers, leaders and display the corresponding functional interface, so as to facilitate users to understand relevant energy consumption information anytime and anywhere.
